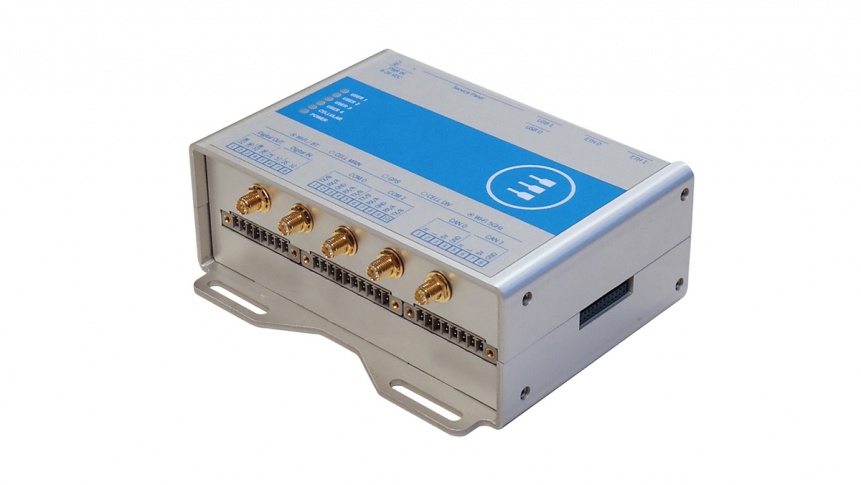

The DynaGATE 10-12 is a Multi-service IoT Edge Gateway that has been designed to deliver LTE connectivity with 2G/3G fallback to automotive and lightly rugged applications.
Based on the TI AM335x Cortex-A8 (Sitara) processor family, with 1GB of RAM, 8GB of eMMC and a user-accessible microSD slot, the DynaGATE 10-12 is a low power gateway suitable for demanding use cases: it supports a 9 to 30V power supply with transient protection and vehicle ignition sense, and provides protected serial ports, CAN bus, noise and surge protected USB ports, and isolated digital interfaces.
All interfaces are suitable for applications with a high level of shock and vibration: front panel USB ports feature high retention connectors and all other signals are delivered by locking connectors or screw-flange terminal blocks.
The DynaGATE 10-12 features a wide range of connectivity capabilities: it integrates an internal LTE Cat 1 cellular modem with dual Micro-SIM support, Wi-Fi, Bluetooth Low Energy, Fast Ethernet ports, and a GNSS with Untethered Dead Reckoning.
For more information on the gateway click here.
